DBDOC NO SOURCE CONFIG.ERR

This message can either say "configuration built" or "configuration not built".

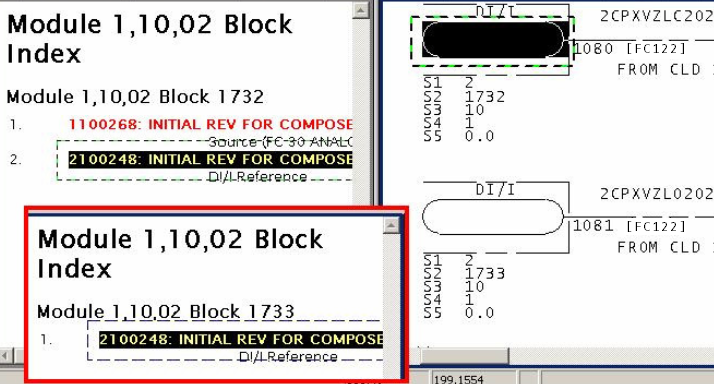

No source: Config: Module 1,10,02 Block 1733 used - configuration built.

This message simply shows you that a block is being imported from a module that was built, but the block does not exist in the CAD or CLD files.

There are three circumstances where you can be told "Configuration not built".

1. The block comes from an external source like PI or FDI.
2. The block comes from a module that was not built.
3. The spec that is in the import block is in error.

--Generating index: Module 2,01,08 Block Index - configuration not built
No source: Config: Module 2,01,08 Block 1350 used - no configuration information.
No source: Config: Module 2,01,08 Block 3131 used - no configuration information.
No source: Config: Module 2,01,08 Block 3220 used - no configuration information.
No source: Config: Module 2,01,08 Block 3222 used - no configuration information.
No source: Config: Module 2,01,08 Block 3227 used - no configuration information.
No source: Config: Module 2,01,08 Block 3229 used - no configuration information.
No source: Config: Module 2,01,08 Block 3236 used - no configuration information.
No source: Config: Module 2,01,08 Block 3239 used - no configuration information.
No source: Config: Module 2,01,08 Block 3275 used - no configuration information.
No source: Config: Module 2,01,08 Block 3277 used - no configuration information.
No source: Config: Module 2,01,08 Block 3316 used - no configuration information.
No source: Config: Module 2,01,08 Block 3317 used - no configuration information.
No source: Config: Module 2,01,08 Block 3318 used - no configuration information.
No source: Config: Module 2,01,08 Block 3319 used - no configuration information.
No source: Config: Module 2,01,08 Block 3420 used - no configuration information.
No source: Config: Module 2,01,08 Block 3421 used - no configuration information.
No source: Config: Module 2,01,08 Block 3422 used - no configuration information.
No source: Config: Module 2,01,08 Block 3423 used - no configuration information.
No source: Config: Module 2,01,08 Block 3424 used - no configuration information.
No source: Config: Module 2,01,08 Block 3425 used - no configuration information.
No source: Config: Module 2,01,08 Block 3426 used - no configuration information.
No source: Config: Module 2,01,08 Block 3429 used - no configuration information.
No source: Config: Module 2,01,08 Block 3430 used - no configuration information.
No source: Config: Module 2,01,08 Block 3431 used - no configuration information.
No source: Config: Module 2,01,08 Block 3432 used - no configuration information.
No source: Config: Module 2,01,08 Block 3433 used - no configuration information.
No source: Config: Module 2,01,08 Block 3434 used - no configuration information.
No source: Config: Module 2,01,08 Block 3436 used - no configuration information.
No source: Config: Module 2,01,08 Block 3437 used - no configuration information.
No source: Config: Module 2,01,08 Block 3438 used - no configuration information.
No source: Config: Module 2,01,08 Block 3439 used - no configuration information.
No source: Config: Module 2,01,08 Block 3440 used - no configuration information.
No source: Config: Module 2,01,08 Block 3441 used - no configuration information.
No source: Config: Module 2,01,08 Block 3442 used - no configuration information.
No source: Config: Module 2,01,08 Block 3443 used - no configuration information.
No source: Config: Module 2,01,08 Block 3444 used - no configuration information.
No source: Config: Module 2,01,08 Block 3445 used - no configuration information.
No source: Config: Module 2,01,08 Block 3446 used - no configuration information.
No source: Config: Module 2,01,08 Block 3447 used - no configuration information.
No source: Config: Module 2,01,08 Block 3448 used - no configuration information.
No source: Config: Module 2,01,08 Block 3449 used - no configuration information.
No source: Config: Module 2,01,08 Block 3450 used - no configuration information.
No source: Config: Module 2,01,08 Block 3451 used - no configuration information.
No source: Config: Module 2,01,08 Block 5017 used - no configuration information.

Here we can see that the first and last blocks are well off on their own, meaning they may be orphans, and potential errors. The middle section of consecutive blocks are probably correct, but should be checked anyway.

If the blocks actually exist, you can use BuildPlus | Tools | Project Options | Define to define them and eliminate the error message.

It's likely that there are multiple INFI 90 systems in this plant. Note that when you build all your systems together, DBDOC will check them against each other.

This error can be built directly into Hyperview. For more information, see the article Building error reports into the M14.
