This message means that a tag name was found in the graphics file that was not in any database. These undefined tags represent "deadspots" in the graphics - places where you would expect a tag to be displayed but it is not. Sometimes this message happens when a graphic is brought from somewhere else, used as a prototype, and left on the system. It also occurs when a tag is created in Composer or WinCAD, but is not moved into the tag database.
--Scanning graphic AACRD00.DIS Tag name TC44165-CO not found in any database. Tag name TC44165 not found in any database.
This graphic has one or more tags on it that are not in the database and do not work.
A message such as:
--Scanning graphic 1-BA-U1ELECTRICALTABLE.M1 Tag name 1BAT10 CE031 not found in any database in LYB_TagTextDescrip included by LYB_AnalogTableAOL.
indicates that the tag specified may not be referenced directly on the graphic, but is referenced in a submodel included by another submodel.
When many tags are not found on a single graphic, it means that graphic is very much broken and probably is not in use.

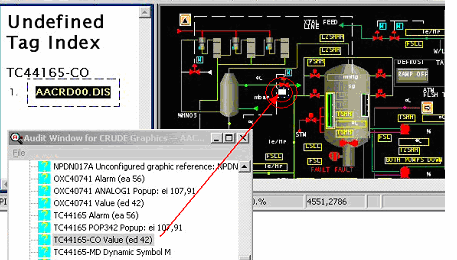

See how the Audit Window actually shows you the type of data being displayed for the undefined tag.
This error can be built directly into Hyperview. For more information, see the article Building error reports into the M14.
