DBDOC TOO FEW INPUTS.ERR

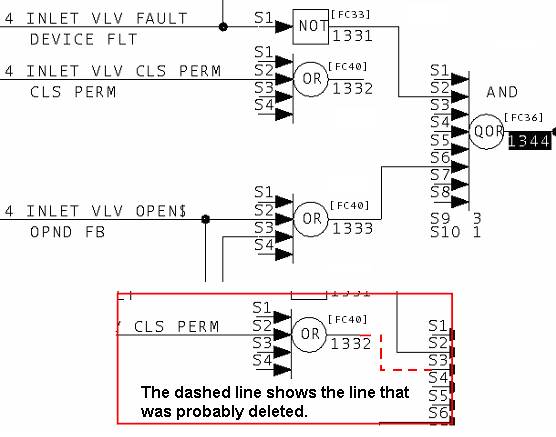

The function block requires more inputs than have been provided. It cannot work as it is. The usual example is of an 8 input QOR block (FC 36) used as an AND operator, with S9 greater than the number of inputs.

--Module 4,10,04 QOR Report
Insufficient number of inputs (2 wired, 3 required) in FC 36 Module 4,10,04 Block 1344.

Image:no tool error reports 55.png

This error can be built directly into Hyperview. For more information, see the article Building error reports into the M14.
